A Manual J load calculation decides how much cooling your home needs. Square footage cannot answer that on the Grand Strand, where humidity carries as much of the load as heat does. Here is what it measures, what breaks without it, and what paperwork to expect from a new HVAC system installation in North Myrtle Beach.
Quick answer
What is a Manual J load calculation?
A Manual J load calculation measures how much heat a home gains and loses, room by room, and sets the required cooling capacity from that number. It is the residential sizing standard published by ACCA. Equipment is then chosen to land between 95 and 115 percent of the calculated load.
Why AC sizing matters more than square footage
Capacity is not a preference. It is the output of a measurement. ENERGY STAR tells homeowners to make sure a contractor uses the actual characteristics of the home, and warns against a rule of thumb.
Two houses with the same floor plan can need different equipment. One faces west with wide glass. One sits under oaks with newer attic insulation. Square footage matches. Load does not. That holds across our air conditioning services on the Grand Strand.
What a load calculation measures
Manual J works from the building:
- Wall, ceiling and floor area, with insulation levels
- Window size, glazing and the direction each one faces
- Air leakage through the envelope
- Ceiling height and interior volume
- Where the ducts run, and whether that space is conditioned
- Occupancy, plus appliance and lighting heat
The result is room by room, not a whole-house guess.
Why the coast changes the math
Coastal South Carolina sits in ASHRAE Climate Zone 3A, the hot-humid zone, with summer design temperatures reaching 93 to 96 degrees dry-bulb. That splits the load in two. Sensible load is the heat you feel. Latent load is the moisture the system must condense out.
Inland, a sizing error costs efficiency. Here it costs comfort, because the latent half fails first. See our complete guide to HVAC for coastal Carolina homes.
What happens when the size is wrong
Three failure modes cover almost all of it. An oversized system short-cycles and leaves humidity behind. An undersized one runs all afternoon and falls behind anyway. Wrong ducts defeat correct equipment before it reaches a room.
An oversized system short cycles and leaves humidity behind
The thermostat reads 74 and the air still feels heavy. The Department of Energy Building America Solution Center gives the mechanism: an oversized system drops the temperature below the setpoint quickly, then shuts off before removing moisture, causing high humidity in humid climates.
Why runtime is what removes moisture
Dehumidification is a function of time, not capacity. Warm air must keep crossing a cold coil long enough for water to condense and drain. Energy Vanguard puts the threshold at roughly 15 minutes of runtime before serious dehumidification begins. A bigger unit gets less of that time, not more.
What short cycling costs the equipment
Starting is the hardest thing a compressor does. ENERGY STAR notes that oversized equipment may cycle too frequently, resulting in less comfort and a shortened lifespan.
An undersized system never catches up on a design day
The opposite error is rarer and easier to spot. The system runs steadily through a 95 degree afternoon and the temperature climbs anyway. If yours holds in June and loses ground in August, that is a sizing question for a technician.
Ducts sized for a different system undo a correct calculation
Correct equipment on the wrong duct is still the wrong system. A retrofit often inherits runs built for something smaller. Undersized returns starve the air handler, and leaky attic runs dump cooled air where nobody lives. Hence Manual D.
How a proper Manual J is done
Three steps, in order, each feeding the next. Alex Todd, our owner and lead technician, is trained in all three ACCA standards along with EPA 608 refrigerant handling, and runs them on our installs.
Step one, measure the house room by room

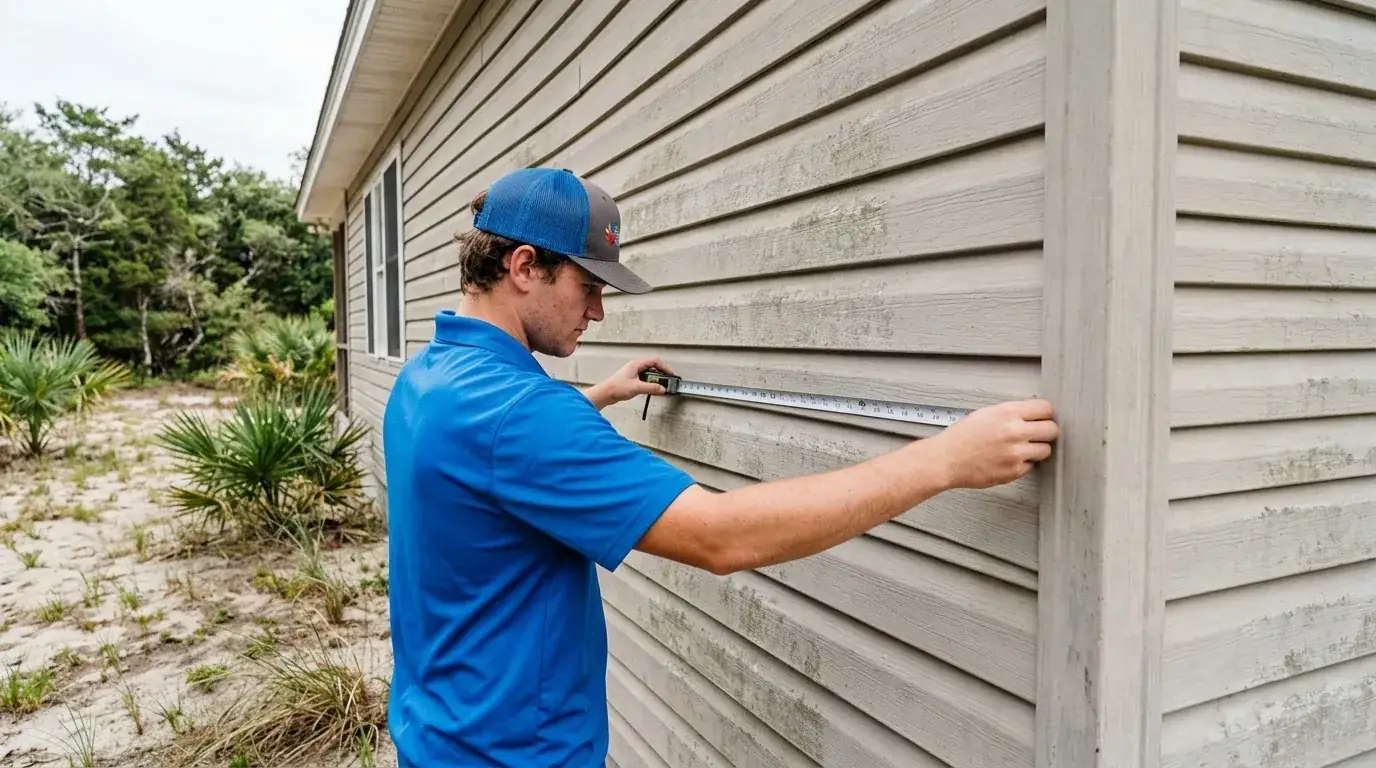

A technician records the envelope: wall and ceiling areas, attic insulation depth, every window with its glazing and orientation, where the ducts run, and how the house is occupied. This cannot be done over the phone, and it is the step most often skipped.
Step two, run the load against local design conditions
The measurements go into ACCA-approved software with the local design conditions, which here means that 93 to 96 degree summer figure and Climate Zone 3A humidity. The software returns a sensible load and a latent load. A result reporting only tonnage has discarded the half that governs how the house feels in August.
Step three, select equipment with Manual S and design ducts with Manual D
Manual S turns the load into a specific machine. The Department of Energy Building America Solution Center sets the target: manufacturer-listed capacity at design conditions should fall between 95 and 115 percent of the calculated load, or the next nominal size. Manual D then sizes the ducts and returns to match. Format is settled here too, which is where a package unit versus split system for coastal homes is decided on evidence instead of habit.
Common myths about HVAC sizing
Three beliefs cause most of the oversized equipment on the coast. Each is wrong for a checkable reason.
Myth, a bigger unit cools better
A bigger unit cools faster, which is a different thing. It reaches the setpoint sooner and spends less time pulling moisture from the air. Extra capacity buys speed you do not need and costs runtime you do.
Myth, square footage is enough to size a system
Square footage says nothing about which way the glass faces, how tight the envelope is, or where the ducts live. ENERGY STAR tells homeowners not to rely on a rule of thumb. A tonnage-per-square-foot shortcut is exactly that.
Myth, replacing like for like means the size is already right
This one is expensive on a retrofit, because it inherits whatever error was made last time. Matching a 2004 tonnage reproduces a 2004 guess, and new windows, added insulation or a converted porch have moved the load since. Designing to spec rather than matching the old cabinet is the difference between an engineered system and a swap.
What to ask before you sign a quote
You do not need to run the math. You do need to tell whether anyone did.
Documents you should receive
Ask for four things, before the deposit:
- The Manual J output, as a software report, not a number written on a quote
- The Manual S equipment selection, showing capacity against that load
- The Manual D duct design, including the returns
- Photographs of the finished work
We hand those over as a job packet on every install. On budget, our breakdown of what a new AC system costs on the Grand Strand covers where the money goes.
Signs the sizing was guessed
A tonnage figure quoted over the phone. A recommendation matching the old unit without anyone opening the attic. No windows counted, no returns measured. Any one of those means the calculation did not happen, and it is worth a second evaluation.
Common questions
Manual J load calculations, answered.
What is a Manual J load calculation?
A Manual J load calculation is the ACCA standard for working out how much heating and cooling a home needs. A technician measures the envelope, windows, insulation, air leakage and occupancy, then calculates the load room by room. Capacity is selected from that number, not from square footage.
What size AC do I need for my home?
No tonnage rule answers this from square footage, and we will not quote one sight unseen. The size comes from a Manual J load calculation run on your house. Book an on-site evaluation, and ask for the output in writing so you can see how the number was reached.
How long does a Manual J load calculation take?
The visit runs longer on a larger home, so we do not publish a fixed time. What it covers does not change. A technician measures every room, records windows, insulation and duct locations, notes how the house is occupied, then runs the load and returns the result in writing.
Is a bigger air conditioner better in a humid climate?
No. Dehumidification depends on runtime, and Energy Vanguard puts the threshold at roughly 15 minutes before serious moisture removal begins. An oversized unit reaches the setpoint faster and shuts off sooner, so it gets less of that runtime. The house ends up cool and damp at once.
Can a contractor size my system from square footage alone?
Some do, but the result is a guess. ENERGY STAR advises homeowners to make sure a contractor uses the actual characteristics of the home rather than a rule of thumb. Square footage ignores window orientation, insulation, air leakage and duct location, and each moves the load.
What documents should I get after a new AC installation?
Ask for the load calculation output, the equipment selection that matches it, the duct design, and photographs of the completed work. Comfort Masters Heating & Cooling supplies those as a job packet. New installs carry a 3 year labor warranty, so keep the paperwork.
Sources and references
- US Department of Energy, Building America Solution Center. Air Conditioning resource guide. Manual J guidance, the 95 to 115 percent selection range, oversizing effects.
- ENERGY STAR. HVAC Quality Installation. Right-sizing guidance, effects of frequent cycling.
- Air Conditioning Contractors of America. ACCA. Publisher of the Manual J, S and D design standards.
- Energy Vanguard. How to Tell If You Have an Oversized Air Conditioner. Dehumidification runtime thresholds.
